SDRs over the InternetAt the recent field day exercises I mentioned the use of SDRs over the web to look at field day exchanges at different parts of the country. At the time I couldn’t recall the web address. It is included in this email along with some general comments on the sites use.
|
A WebSDR is a Software-Defined Radio receiver connected to the internet, allowing many listeners to listen and tune it simultaneously. SDR technology makes it possible that all listeners tune independently, and thus listen to different signals; this is in contrast to the many classical receivers that are already available via the internet. Each of the listed sites indicates the bands they monitor and the antenna type that they are using. There are 7 sites in the USA and others around the world. It is easy to see the band activity while using the waterfall display as well as seeing the relative noise across the bands. The waterfall display is a time history (vertically displaced) the most recent being the bottom-most line. Frequency runs from left to right and signal strength at the receive site is color coded from blue to red. You can adjust filter bandwidth and center frequency with readouts on frequency and bandwidth. Tuning can be accomplished either by mouse control or button adjustments. The WEBSDR site provides a quick way to see activity at different parts of the country. A friend of mine at Piqua, OH has used the Reston, VA site to monitor his SSB transmission from Piqua as it is received at the VA Site.
Hope you all enjoy the site
Wally KI4VPD
Hope you all enjoy the site
Wally KI4VPD
Working Digital Modes?
Many of you are working digital modes already. Wouldn't it be enjoyable to share your experiences with the rest of us? We could discuss hardware, software, technique, product reviews, etc. We could have a section on the website similar to the DX report that Chuck produces every month. We could call it something like the Digital Forum or Digital User's Corner. It doesn't matter what it is called as long as we can share and discuss ideas, experiences, successes and demonstrate and help others that may have quesitions getting into the digital modes. We could even form a Digital Mode Net. You can write an article such as this one, on your particular digital mode and why you decided to go that way and what benefit it provides or even continue the discussion on PSK-31. If you need assistance, I would be very pleased to help you compose and write it so it can be posted on the website for others to read and enjoy.
73 Rick WD4JJI
Working with Hamsticks in a Dipole Configuration
While I continued to search for the perfect mode for me, I was able to get on the air using a pair of hamsticks in a dipole configuration, one of the many examples on the CD. I made a few stateside phone contacts but this antenna was far from invisible and since I couldn't get it high or far enough from the structure of the house, it was very noisy. The search continued. I took a look at the space I had to work with in the attic, the vaulted ceilings, thick insulation and air conditioning duct work ruled out a simple dipole.
|
New Digital Groups Kickoff in July
Increasing interest in the digital technologies along with many suggestions from the membership to form a digital users group are the key reasons for the launch of these groups. There are two groups that have been formed to date. One is the D-Star Rag Chew Group and the other is the Digital Users Group.
The D-Star Rag Chew Group is just that, a rag chew session. Intended for shooting the breeze, assisting others with D-Star and DV Dongle and for learning more about D-Star features/functions. This group meets every Tuesday at 11:00 a.m. on Reflector #4, Moudule (Node) B. Stay current on news about the group, schedule or repeater/reflector changes by referring to the website. The Digital Users Group was started to provide a forum for members to share their knowledge, learn how the various modes work, get assistance from others and even share rare DX contacts with the group. PSK 31, an efficient antenna and 35 watts or less is all that is required to work the world. A perfect mode and a perfect way to comply with The Villages restrictions and still practice our hobby. Round table discussions, software suggestions, mode testing and a variety of Q & A have been addressed so far. We may even chase DX. The 146.925 repeater is used as a companion frequency to provide directions, status, troubleshooting assistance and feedback all while testing, transmitting and learning PSK 31. If you ever wanted to learn about the digital modes or to get on the air using PSK 31, this may be just the ticket for you. Stay current on news about this group or schedule changes by referring to the website. 73 Rick WD4JJI
|
PSK31 a perfect solution for DXCC within the Villages restrictions
Article from: Rick WD4JJI
The digital modes offer many new frontiers to explore and enjoy. This article explores what can be done with low power, PSK 31 and a short (22 Foot) antenna. Many of you are working PSK 31 or other digital modes already. The Villages antenna restrictions are somewhat challenging but with some thought and ingenuity a very acceptable operating antenna is achievable. I discovered the The Villages Amateur Radio Club and joined at the first meeting I attended in October, 2010. I received a copy of the Antenna CD containing a variety of Villages antenna systems. I had high hopes that I would find the best antenna solution on that CD.
I also met a few hams that showed me what they had done. But I could never get their commitment to a high level of satisfaction with their “restricted” operation. And my goals may have been different than theirs. I not only wanted to get on the air but I wanted to access DX from all corners of the world. Considering the restrictions, I wanted to achieve this goal with “low power” to avoid any interference with neighbors and the antenna had to be “invisible”. CW was an operating mode on the top of my list but I was rusty and it would take some time for my skills to come back up to par. With a commitment to revisit CW, I moved on.
The digital modes offer many new frontiers to explore and enjoy. This article explores what can be done with low power, PSK 31 and a short (22 Foot) antenna. Many of you are working PSK 31 or other digital modes already. The Villages antenna restrictions are somewhat challenging but with some thought and ingenuity a very acceptable operating antenna is achievable. I discovered the The Villages Amateur Radio Club and joined at the first meeting I attended in October, 2010. I received a copy of the Antenna CD containing a variety of Villages antenna systems. I had high hopes that I would find the best antenna solution on that CD.
I also met a few hams that showed me what they had done. But I could never get their commitment to a high level of satisfaction with their “restricted” operation. And my goals may have been different than theirs. I not only wanted to get on the air but I wanted to access DX from all corners of the world. Considering the restrictions, I wanted to achieve this goal with “low power” to avoid any interference with neighbors and the antenna had to be “invisible”. CW was an operating mode on the top of my list but I was rusty and it would take some time for my skills to come back up to par. With a commitment to revisit CW, I moved on.
Should I buy a Linear?
Reviewing the CD again, I found two ideas that I thought would work for me. The one I wanted the most, was a flagpole but it required a lot of work and I wanted to get on the air quickly. It also would take time to convince the XYL that the first landscaping project we were going to undertake was to plant a flagpole in the front yard. Deciding I wasn't ready for that challenge yet, I continued with the other idea which was a wire, 88 feet long, on the roof, with a counterpoise of the same length on the ground. The picture showed the wires coming through the wall into the shack.
|
|
So while my XYL was out of the house, I pulled the desk away from the wall and drilled a hole through it, ran the wires to an MFJ tuner I had and to my surprise it loaded very nicely. I started making phone contacts right away and my range had increased significantly. I was able to work into western Europe on a consistent basis but trying to compete with the power stations was a real challenge. As I increased power I started seeing RF in the shack that affected the USB ports on the computer and froze the logging program. The fix for this was an RF choke installed outside of the shack allowing a coax connection to the tuner.
Being a former RTTY operator, I looked at that option first.
I continued to make contacts stateside, into Europe and South America but I still had to compete with the power stations who frequently made me feel like a QRP station. As the frustration mounted I began looking for other options. My logging program had many digital modes built in and being a former RTTY operator I looked at that option first. The program decoded just fine but as I was scanning the band I found a new sound, and was impressed with how small the band width was compared to that of RTTY. This new mode was PSK-31. I started reading the mail and was impressed with the operating features, the DX contacts that were being made and the consistent reports of 25 to 40 watts of power being used to make these solid contacts.
I made the decision to invest in a SignaLink USB
|
|
I made the decision to invest in a Signalink USB and once configured, I was on PSK-31. I made some stateside contacts and started to make some DX contacts. I was really impressed with the ease of operation and the quality of the DX I was working.
The Flagpole Antenna Solution
But as time went on, I wanted greater distance. I knew that the only way I was going to achieve that and maintain low power was with an antenna that would provide a low angle of radiation. That of course was the flagpole. Now was the time to have a landscaping conversation with the XYL. It took some time for the idea to plant the pole in the front yard was accepted but it was and I did, along with over 500 feet of radials under the grass. Too bad this project couldn't wait for winter but that rare DX was calling me. The flagpole is fantastic! I heard stations that I never heard before while on the wire, and I was able to contact them, amazing! And than it happened, I heard a ZS station calling CQ. I responded and he came back to me. This proved to me that the antenna was doing the job.
|
I now enjoy DX on 35 watts
The fun continues, I have confirmed contacts with VK, ZL, DV, JA and many deep eastern European and Asiatic Ukrainian stations. The longest distance worked so far is 10,040 miles, a VK station. All with a flagpole and 35 watts of power using PSK-31. Although China, The Middle East, India, etc. are still being hunted, I can say with confidence that I will eventually find and work them too. If I sound confident, it's because of PSK 31 and the flagpole.
|
Operating in HF Digital Modes by K8ZAG
Article from: Leon K8ZAG
The widespread availability of powerful Personal Computers that include a digital sound card for Digital Signal Processing (DSP), is allowing radio amateurs to use free software for digital communication. The distinguishing features of HF digital modes today are the use of lower power, small or attic antennas. Today the TNC is replaced by an on-board sound card in the personal computer making it easy to try digital modes.
Ham digital mode decoder software… all freeware.
The widespread availability of powerful Personal Computers that include a digital sound card for Digital Signal Processing (DSP), is allowing radio amateurs to use free software for digital communication. The distinguishing features of HF digital modes today are the use of lower power, small or attic antennas. Today the TNC is replaced by an on-board sound card in the personal computer making it easy to try digital modes.
Ham digital mode decoder software… all freeware.
Most like on Ham Radio Deluxe because it decodes well, easy to use and has interfaces to the past and present transceivers. YES all with only your mouse clicks! You will need the keyboard only for RAG CHEWING. Try them all they are free you may like HAM SCOPE or DIGIPAN better than HRD.
Ham Radio Deluxe (HRD) is a suite of free programs that includes computer control for transceivers, mapping, satellite tracking and logging functions. HRD works on Windows XP, Vista and 7 operating systems. HRD supports most of the VHF, HF, and UHF amateur radio transceivers; Yaesu, ICOM, Elecraft, Ten-Tec FlexRadio, Kenwood. HRD includes a digital mode program called the Digital Master 780 (DM780) that includes built-in logbook, Favorites, Integrated DX cluster, Customizable band layouts, Satellite tracking interface, Scanning. The software is free for use by radio amateurs. If you like HRD you are asked to make a donation to promote Amateur Radio in schools.
Ham Radio Deluxe (HRD) is a suite of free programs that includes computer control for transceivers, mapping, satellite tracking and logging functions. HRD works on Windows XP, Vista and 7 operating systems. HRD supports most of the VHF, HF, and UHF amateur radio transceivers; Yaesu, ICOM, Elecraft, Ten-Tec FlexRadio, Kenwood. HRD includes a digital mode program called the Digital Master 780 (DM780) that includes built-in logbook, Favorites, Integrated DX cluster, Customizable band layouts, Satellite tracking interface, Scanning. The software is free for use by radio amateurs. If you like HRD you are asked to make a donation to promote Amateur Radio in schools.
HRD Radio Control Screen
|
HRD Band Scope Display
|
HRD Digital Modes
PSK, QPSK, Contestia, CW, DominoEx, Hell, MFSK, MT63, OLIVIA, RTTY, RTTYM, THROB.
SuperBrowser decodes and displays all PSK QSOs in one screen
SSTV with Scottie and Martin modes.
RSID (automatic mode detection and tuning).
SuperBrowser decodes and displays all PSK QSOs in one screen
SSTV with Scottie and Martin modes.
RSID (automatic mode detection and tuning).
HRD World Map Screen
|
HRD Logbook Display
|
PSK31 is a digital mode using keyboard to keyboard QSOs
PSK31 is created by shifting the phase of the carrier. In the most-commonly-used variant (BPSK31), binary information is transmitted by either imparting a 180-degree phase shift (binary zero) or no phase-shift (binary one) in each 32ms symbol interval. The boundaries between character codes are marked by two or more consecutive zeros. Since no character code contains more than one consecutive zero, the software can therefore instantly detect the 'space' between characters. Martinez arranged the character alphabet so that, as in Morse code, the more frequently occurring characters would have the shortest encodings, while rarer characters used longer encodings. He gave the name 'varicode' to this encoding scheme. Usually short QSO’s exchanging station info, weather, name and report etc. PSK-31 is a full duty cycle mode.

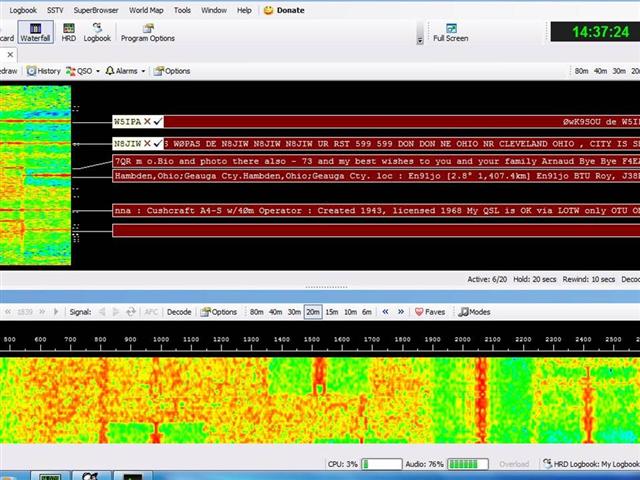

HRD PSK-31 Super Browser Display
PSK31's bandwidth of 31.25 Hz was chosen because a normal typing speed of about 50 words per minute requires a bit rate of about 32 bits per second, and specifically because 31.25 Hz could easily be derived from the 8 kHz sample rate used in many DSP systems, including those used in the computer sound cards commonly used for PSK31 operation (31.25 Hz is 8 kHz divided by 256, and so can be derived from 8 kHz by halving the frequency eight times).
HRD PSK-31 QSO Display
Colloquial usage of the term 'PSK31' in amateur radio usually implies the use of the most commonly-used variant of PSK31: binary phase shift keying. BPSK uses no error control, but an allied mode, QPSK31, uses four phases instead of two, to provide a degree of forward error correction. It is very simple to switch from BPSK to QPSK if difficulties arise during a contact.
PSK31's efficiency and narrow bandwidth make it highly suitable for low-power and crowded-band operation. PSK31 contacts can be conducted at less than 100Hz separation, so with disciplined operation at least twenty simultaneous PSK31 contacts can be carried out side-by-side in the bandwidth required for just one SSB voice contact.
PSK31's efficiency and narrow bandwidth make it highly suitable for low-power and crowded-band operation. PSK31 contacts can be conducted at less than 100Hz separation, so with disciplined operation at least twenty simultaneous PSK31 contacts can be carried out side-by-side in the bandwidth required for just one SSB voice contact.
Varicode is a Huffman code used in PSK31
Varicode supports all ASCII characters, but the characters used most frequently have shorter codes, The space between characters is indicated by a 00 sequence, a variation of Fibonacci coding, Originally created for speeding up real-time keyboard-to-keyboard exchanges over low bandwidth links, it is a very useful format to shrink text files.
Binary Translation of Varicode Shows BIT Count Reduction for Common Characters
Radio Teletype RTTY - "Rat"
RTTY, using either AFSK or FSK modulation, is moderately resistant to vagaries of HF propagation and interference, however modern digital modes, such as MFSK, use Forward Error Correction to provide much better data reliability. Landline teleprinter operations (TTY) began in 1849 when a circuit was put in service between Philadelphia and New York City. Émile Baudot designed a system using a five unit code in 1874 that is still in use today. Teleprinter system design was gradually improved until, at the beginning of World War II, it represented the principal distribution method used by the news services.
Vintage TTY Paper Punch Tape
|
HRD RTTY QSO Display
|
Slow Scan Television (SSTV) is a picture transmission
SSTV is narrowband television takes up to a maximum of 3 kHz of bandwidth providing still pictures transmission, usually taking from about eight seconds to a couple of minutes, depending on the mode used, to transmit one image frame. SSTV uses analogue frequency modulation, in which every different value of brightness in the image gets a different audio frequency. In other words, the signal frequency shifts up or down to designate brighter or darker pixels, respectively. Color is achieved by sending the brightness of each color component (usually red, green and blue) separately. This signal can be fed into an SSB transmitter, which in part modulates the carrier wave. A transmission consists of horizontal lines, scanned from left to right. The color components are sent separately one line after another. The color encoding and order of transmission can vary between modes. The modulating frequency changes (between 1500 and 2300 Hz) corresponding to the intensity. The modulation is analogue, so even though the horizontal resolution is often defined as 256 or 320 pixels, they can be sampled using any rate. The image aspect ratio is conventionally 4:3. Lines usually end in a 1200 Hz horizontal synchronization pulse of 5 milliseconds.
HRD SSTV QSO Display
Follow this link for a nice SSTV freeware link. Provides two tools, an SSTV signal generators and a signal viewer
Interfacing to Digital (Transceiver to Personal Computer)
Interfacing to your PC sound card interface to provide all modulate / demodulate functions as well as operator interface and control. The sound card is attached to an HF SSB rig using the PC speaker out and microphone in ports on the sound card. Typically, there is an interface installed between the sound card and the rig to adjust signal levels and provide good isolation between the two devices. On the SSB rig side, typically the microphone input and external speaker out are used. PTT control is done via a control signal on a PC serial port (RTS or DTR) and isolated with an opto isolator to drive the rig PTT line. In some transceivers the data port of the rig can be used in lieu of the microphone and external speaker ports. You can buy or build your interface.
Popular TX to PC Products
Popular TX to PC Products
Homebrew Interfacing from G4KQU
600 Ohm to 600 Ohm Isolation Transformers are available from All Electronics for $1.25 each plus shipping
HF Digital Frequencies
Leon’s Shack K8ZAG
|
|
Leon K8ZAG and XYL at the TVARC 2010 Christmas Party
|
If you would like to view a PDF of K8ZAG Digital Modes presentation click here (large PDF file)
|
